Featured High-Efficiency Rotary Compressor Systems
Engineered for continuous heavy-duty industrial duty cycles across Portuguese plants
The Compressed Air Industrial Ecosystem in Portugal
Transitioning toward smart automation, carbon-neutral manufacturing, and dynamic energy efficiency
Portugal has solidified its standing as a dynamic southern European manufacturing and export hub. With robust industrial corridors extending from the northern manufacturing heartlands of Porto, Braga, and Aveiro to the industrial powerhouses of Setúbal, Leiria, and the Lisbon Metropolitan Area, the country's reliance on premium compressed air systems is expanding rapidly. Modern facilities require continuous, clean, and vibration-isolated rotary screw air compressors to drive automated assembly lines, injection molding, CNC cutting, and bulk material handling.
As industrial facilities throughout Portugal adapt to stringent European Union decarbonization mandates and volatile Iberian electrical market (MIBEL) power rates, standard fixed-speed air compressors are being replaced by high-tier Permanent Magnet Variable Frequency Drive (PM VFD) twin-screw systems. These technologies decrease operational lifecycle costs by modulating motor speeds exactly to intermittent pneumatic demand, mitigating costly unload idling cycles and drastically lowering factory carbon footprints.
Key Industrial Growth Sectors
Strategic sectors such as automotive components (Palmela & Mangualde clusters), cork harvesting and high-tech stopper processing (Santa Maria da Feira), ceramic tiles, food & beverage packaging (Douro & Alentejo wineries), and high-precision tooling demand ISO 8573-1 compliant compressed air.
Energy Conservation Imperatives
With industrial electricity optimization directly tied to IAPMEI funding and EU Green Deal goals, deploying two-stage compression and IE4/IE5 permanent magnet motors reduces specific energy consumption (kW/m³/min) by up to 35% compared to legacy installations.
High-Pressure Laser Cutting Integration
Dedicated 20-bar rotary screw booster systems engineered for fiber laser cutting workstations in Leiria and Águeda metal fabrication clusters, ensuring oxide-free edge precision.
100% Oil-Free Clean Air Solutions
Designed for pharmaceutical manufacturing in Coimbra, wine bottling lines, and food processing facilities requiring ISO 8573-1 Class 0 pure air certification with zero hydrocarbon contamination.
Direct Factory Exporter Network
Streamlined supply chain logistics delivering customized twin-screw units, turnkey containerized compressor stations, air receivers, and filtration accessories directly to Portuguese ports.
Company Profile & Manufacturing Excellence
Shanghai Honest Compressor Co., Ltd. is a British-owned enterprise. It was founded in early 2004. The production address is located at NO. 355 Jiajian Branch Road, Malu Town, Jiading District, Shanghai, China. It is a large-scale manufacturing enterprise specializing in the production of twin-screw air compressors in China. At the same time, it is also an important supplier of air system solutions.
We provide various types of piston air compressors (low pressure, medium pressure, high pressure, oil-free air compressors), screw air compressor systems (3KW–480KW various screw air compressors, gas separation equipment, refrigerant compressors, cold dryers, filters, ceramic membrane filtration systems) and various equipment accessories and consumables.
We fully implement strict management throughout the entire manufacturing process, strictly monitor product quality and environmental protection, and the company has passed ISO9001:2015 quality management system certification.
We pay attention to market trends in technology research and development, close to the needs of users, actively absorb the advantages of domestic and foreign brand performance structures, and integrate our own features of convenient maintenance, so that the air compressors we produce have more perfect structures, better performance, and energy saving and consumption reduction. Obviously, after the test of the National Compressor Inspection Center, the energy consumption data is superior to the national energy-saving standard.
We can provide users with various series of 3kW–480kW, air-cooled and water-cooled screw air compressors with a flow rate of 0.5m³/min–75m³/min. There are multiple models and categories of machines for users to choose from, as well as permanent magnet variable frequency air compressors, oil-free machines, mobile air compressors, etc. We provide a complete set of construction plans for air compressor stations with design and manufacturing, user training, and service, with the ability to support and host a complete set of service items such as overhaul.
In order to facilitate the contact and communication between customers and enterprises, the company has opened a free service hotline of 400-705-9168, set up branches and dealer sales and service teams in major cities across the country, and will fully meet the various needs of users.
Rotary Screw Air Compressor System Specifications
Standard export configurations available for Portuguese and European Union industrial sectors
| Model Series | Rated Power (kW / HP) | Working Pressure (Bar) | Free Air Delivery (m³/min) | Cooling Method | Target Industrial Application in Portugal |
|---|---|---|---|---|---|
| ETOV-55A | 55 kW / 75 HP | 7.0 – 10.0 Bar | 9.80 – 11.20 | Oil-Cooled / Air Dual | Automotive Parts Assembly & Robotic Tooling |

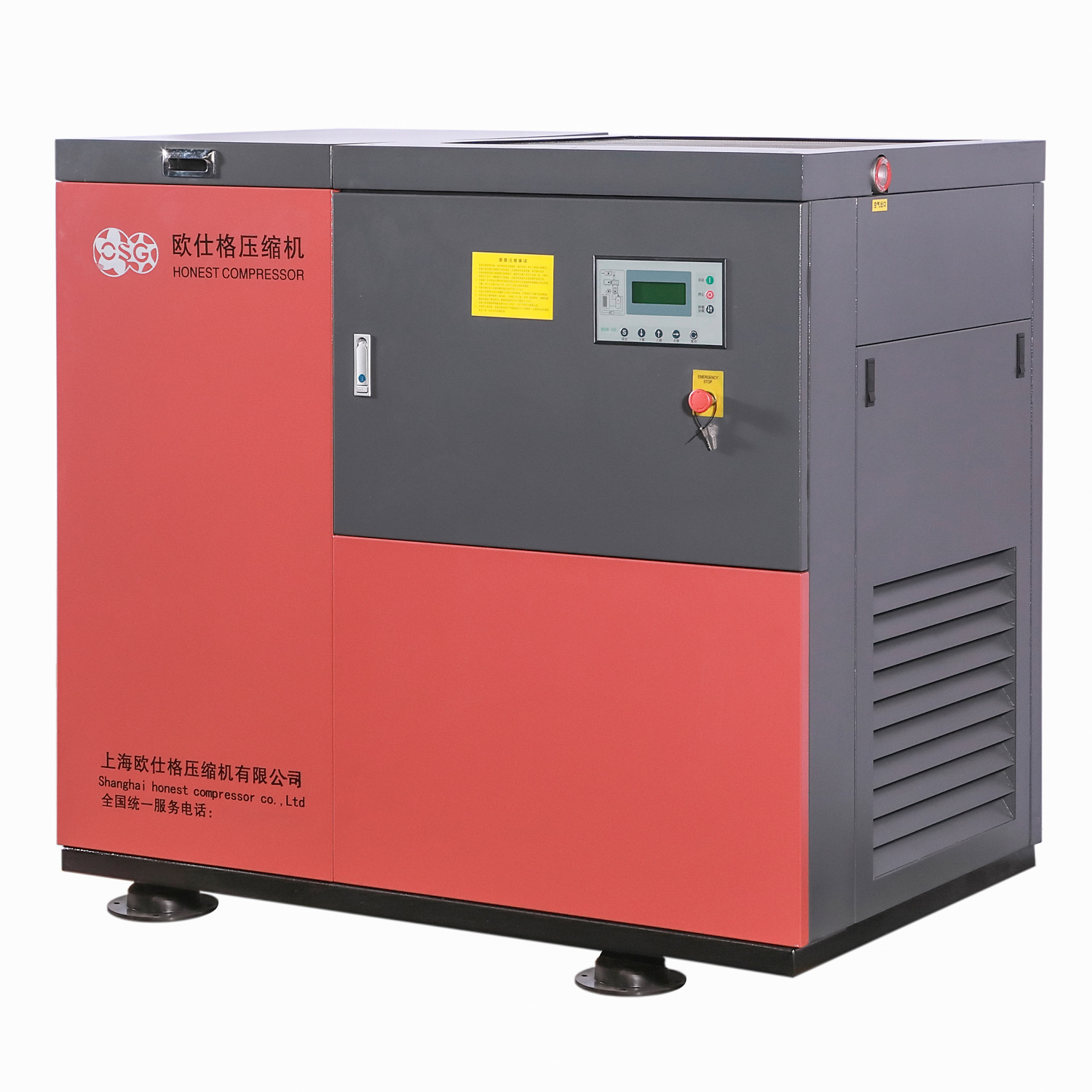

| E-37A High Pressure | 37 kW / 50 HP | 16.0 – 20.0 Bar | 3.60 – 4.20 | Forced Air Cooling | Precision CNC Fiber Laser Metal Cutting |
| ETOV-132 Two-Stage | 132 kW / 180 HP | 8.0 – 13.0 Bar | 22.50 – 26.80 | Air / Water Cooled | Ceramic Tile & Heavy Glass Production |

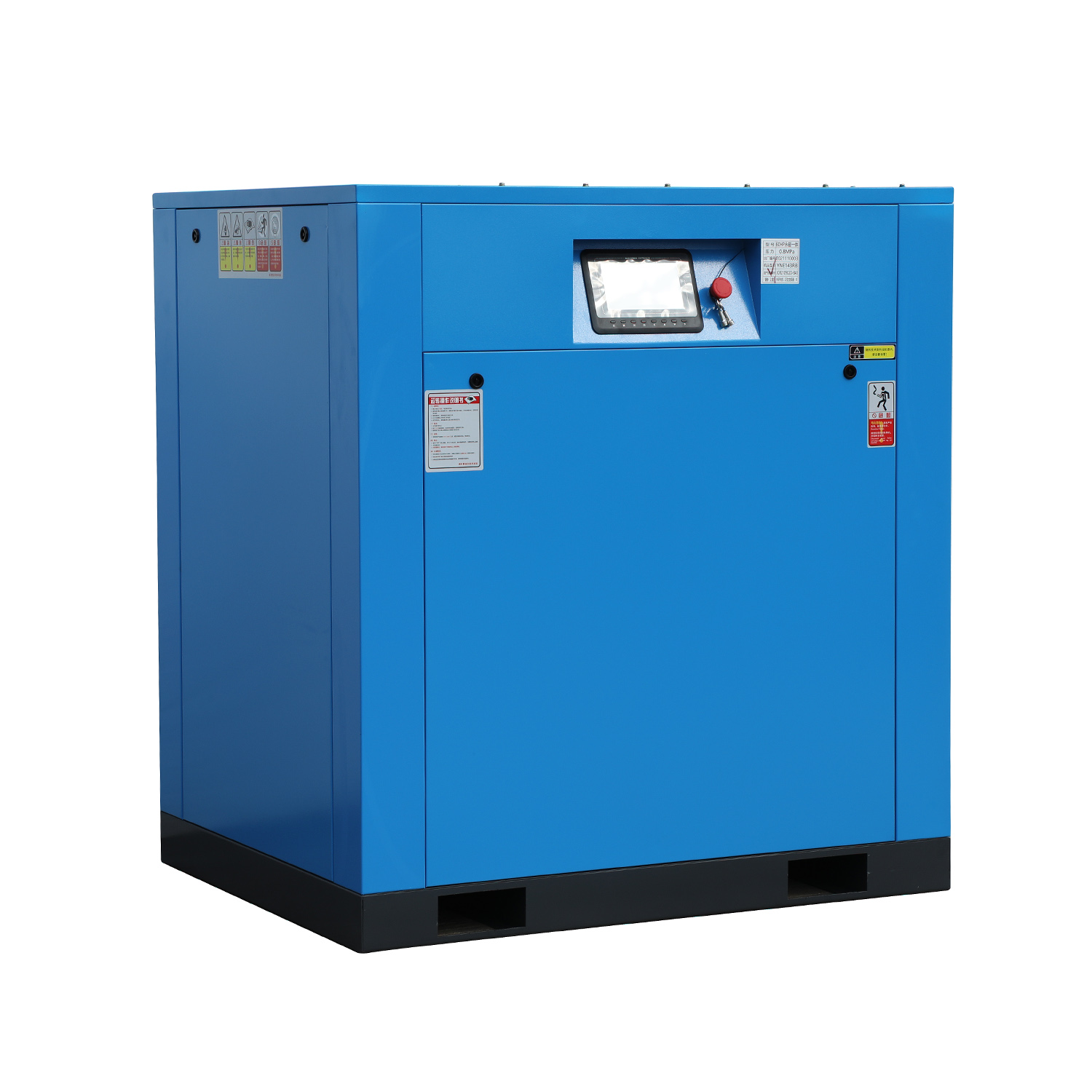

| PM-VFD-30 | 30 kW / 40 HP | 7.0 – 10.0 Bar | 5.10 – 5.80 | Air Cooled Intelligent Fan | Cork Stopper Finishing & Sorting Lines |
| EOF-75W Oil-Free | 75 kW / 100 HP | 7.0 – 10.5 Bar | 11.20 – 13.00 | Dry Water-Cooled | Pharmaceutical & Douro Wine Bottling Facilities |
| SVP-55 Screw Vacuum | 55 kW / 75 HP | 0.35 mbar – 80 kPa | 18.00 – 32.00 | Air Cooled / Oil-Injected | Woodworking, Packaging & Thermoforming |
Localized Engineering Applications Across Portugal
Delivering high-reliability pneumatic performance across diverse operational environments
Automotive Tier-1 & Tier-2 Manufacturing
Supplying major automotive supply chains around Palmela, Setúbal, and Mangualde with dual-stage variable speed rotary screw compressors. Continuous 24/7 pressure stability ensures automated paint shops, pneumatic clamping fixtures, and robotic spot-welding arms function without pressure drop-offs.
Cork Processing & Specialized Forest Products
Portugal accounts for more than 50% of the global cork market. Processing plants in the Aveiro and Alentejo regions utilize our rotary compressors and screw vacuum pumps for pneumatic dust extraction, mechanical sorting, stopper punching machines, and automated surface treatment chambers.
Ceramics, Porcelain & Construction Materials
The high-volume tile and sanitaryware factories centered around Ílhavo, Leiria, and Caldas da Rainha demand rugged rotary screw compressors equipped with heavy-duty air filtration units (heavy dust resistance) that supply large volumes of pneumatic power to high-pressure press cylinders and glaze-spraying stations.
Food, Dairy & Wine Bottling Operations
From the world-renowned wineries of the Douro Valley to dairy cooperatives in the Azores and Minho, our Class 0 dry-type oil-free screw air compressors and ceramic membrane filtration systems ensure zero contamination in automated nitrogen generation, bottle blowing, filling, and capping machinery.
Complete Industrial Compressor & Auxiliary Product Line
Full export catalogue of high-performance twin-screw compressors, oil-free systems, vacuum pumps, and genuine consumables
Frequently Asked Questions (FAQ) - Portuguese Industrial Buyers
Key information regarding international shipping, power compatibility, certification, and localized after-sales support
1. Are these rotary industrial compressor units compliant with European Union CE standards and Portuguese power grids?
Yes. All rotary screw compressor units exported to Portugal and the wider EU market are fully compliant with CE Machinery Directives (2006/42/EC), Low Voltage Directives, and Pressure Equipment Directives (PED 2014/68/EU). Electrical control panels are pre-configured for standard European 400V / 3-Phase / 50Hz electrical supply lines and come equipped with Schneider/Siemens electrical protection components.
2. How does Permanent Magnet Variable Frequency Drive (PM VFD) lower electricity costs in Portugal?
Traditional fixed-speed compressors run in an unloaded state when demand drops, consuming up to 45% of full-load power while producing zero air. Our PM VFD screw compressors use high-efficiency permanent magnet synchronous motors to instantly adjust rotational speed from 25% to 100% in real time. This eliminates off-load electricity waste and reduces startup current surges, offering full ROI within 12 to 18 months under current Iberian electricity tariffs.
3. What is the typical lead time and shipping process to major Portuguese container terminals (Leixões & Sines)?
Standard rotary models (7.5kW to 132kW) are maintained in core manufacturing stock in Jiading, Shanghai, with customization and testing completed within 7 to 15 business days. Direct maritime shipping to the Port of Leixões (serving northern Portugal) or the Port of Sines takes approximately 28 to 35 days, with full export documentation provided (Bill of Lading, Certificate of Origin, EUR.1, CE Compliance Documentation).
4. How are maintenance, spare parts, and consumable replacements handled?
Our rotary compressor systems utilize standardized components and modular service bays. Genuine OEM air filters, oil separators, and precision lubrication filters are available for rapid dispatch. In addition, our comprehensive engineering manuals, wiring schematics, and remote diagnostic support via video and cloud monitoring ensure local plant maintenance teams or third-party contractors can service units efficiently without specialized external tooling.
