110Kw/150Hp Two-Stage Rotary Screw Air Compressor Permanent Magnetic Variable Frequency 380V Air Cooled
Core Advantages
- The permanent magnet motor maintains high efficiency at low speeds, delivering obvious energy-saving advantages under low air volume conditions.
- Frequency range covers 0%-100% (vs. 60%-100% for common variable frequency compressors).
- Saves 22%-40% energy compared with fixed-speed compressors.
- Saves 5%-15% energy compared with common inverter compressors.
- Larger system volume fluctuations result in more obvious energy-saving effects.
- Unloading energy saving (inverter):
Traditional stationary air compressors have idling periods during gas consumption fluctuations, requiring 45% electricity even when idling. The permanent magnet VFD air compressor eliminates unloading and energy waste through inverter control; larger units achieve greater savings.
- Pressure control bandwidth energy saving:
Fixed-speed compressors require a minimum 1Bar control pressure band to avoid impact on units and power grids, leading to wider pressure ranges when multiple machines operate together. The OSG permanent magnet VFD series uses inverter control with unlimited stops, operating at a single pressure point. Every 0.14Bar reduction in pressure bandwidth saves 1% energy.
- Energy-saving startup (inverter):
Air compressor starting current is 3-6 times the rated current, and frequent starts waste large amounts of energy. The variable frequency type uses soft start without frequent start-stop, with maximum current not exceeding rated working current, eliminating energy waste and reducing impact on power grid equipment.
Professional serviceAfter-sales service is always a key concern, and timely support is essential. We have professional after-sales engineers and complete spare parts inventory. Our service branches provide timely, professional service and technical training to every customer.
Adequate resource supplyUsing genuine OSG spare parts and consumables is the basic guarantee for long-term compressor operation. We maintain normal and efficient operations with sufficient spare parts and consumables reserves to meet customer needs at any time.
Product quality guaranteeHigh-quality products are the core foundation of business operations. Every product undergoes strict performance and operation tests from raw material procurement and outsourced parts processing to final production, ensuring high-quality machines.
Technical Parameter
| Model | 10A | 15A | 20A | 25A | 30A | 40A | 50A | 60A | |
| 1.2/0.7 | 1.65/0.7 | 2.5/0.7 | 3.2/0.7 | 3.8/0.7 | 5.3/0.7 | 6.8/0.7 | 7.4/0.7 | ||
| Free air delivery / Discharge pressure (m³/min / MPa) |
1.1/0.8 | 1.5/0.8 | 2.3/0.8 | 3.0/0.8 | 3.6/0.8 | 5.0/0.8 | 6.2/0.8 | 7.0/0.8 | |
| 0.95/1.0 | 1.3/1.0 | 2.1/1.0 | 2.7/1.0 | 3.2/1.0 | 4.5/1.0 | 5.6/1.0 | 6.2/1.0 | ||
| 0.8/1.25 | 1.1/1.25 | 1.9/1.25 | 2.4/1.25 | 2.7/1.25 | 4.0/1.25 | 5.0/1.25 | 5.6/1.25 | ||
| Lubricating oil quantity (L) |
4 | 7.5 | 14 | 14 | 14 | 30 | 30 | 30 | |
| Driving mode | Direct drive | ||||||||
| Power supply | 380V/50Hz/3P or customized | ||||||||
| Power (kW) | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 45 | |
| Startup mode | Y-Δ start-up | ||||||||
| Dimension (mm) | 850*670*870 | 1100*750*920 | 1250*850*1160 | 1350*1000*1190 | |||||
| Outlet diameter | G¼ | G¼ | G1 | G1 | G1 | G1¼ | G1¼ | G1¼ | |
| Model | 75A | 100A | 120A | 150A | 175A | 200A | 250A | 300A | 350A |
| Free Air Delivery / Discharge Pressure (m³/min / MPa) | 10.0/0.7 | 13.4/0.7 | 16.2/0.7 | 21.0/0.7 | 24.5/0.7 | 28.7/0.7 | 32.0/0.7 | 36.0/0.7 | 42.0/0.7 |
| 9.6/0.8 | 12.6/0.8 | 15.0/0.8 | 19.8/0.8 | 23.2/0.8 | 27.6/0.8 | 30.4/0.8 | 34.3/0.8 | 40.5/0.8 | |
| 8.5/1.0 | 11.2/1.0 | 13.8/1.0 | 17.4/1.0 | 20.5/1.0 | 24.6/1.0 | 27.4/1.0 | 30.2/1.0 | 38.2/1.0 | |
| 7.6/1.25 | 10.0/1.25 | 12.3/1.25 | 14.8/1.25 | 17.4/1.25 | 21.5/1.25 | 24.8/1.25 | 27.7/1.25 | 34.5/1.25 | |
| Lubricating Oil Quantity (L) | 65 | 65 | 72 | 90 | 90 | 110 | 110 | 125 | 125 |
| Driving Mode | Direct drive | ||||||||
| Power (kW) | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 220 | 250 |
| Startup Mode | Y-Δ Start-up | ||||||||
| Dimension (mm) | 1800*1230*1570 | 1900*1230*1570 | 2300*1470*1840 | 2650*1650*2045 | 3300*2100*2190 | ||||
| Weight (kg) | 1073 | 1272 | 1327 | 1801 | 1848 | 2400 | 2600 | 3100 | 3300 |
| Outlet Diameter | G2 | G2 | G2 | G2½ | G2½ | G2½ | G2½ | DN100 | DN100 |

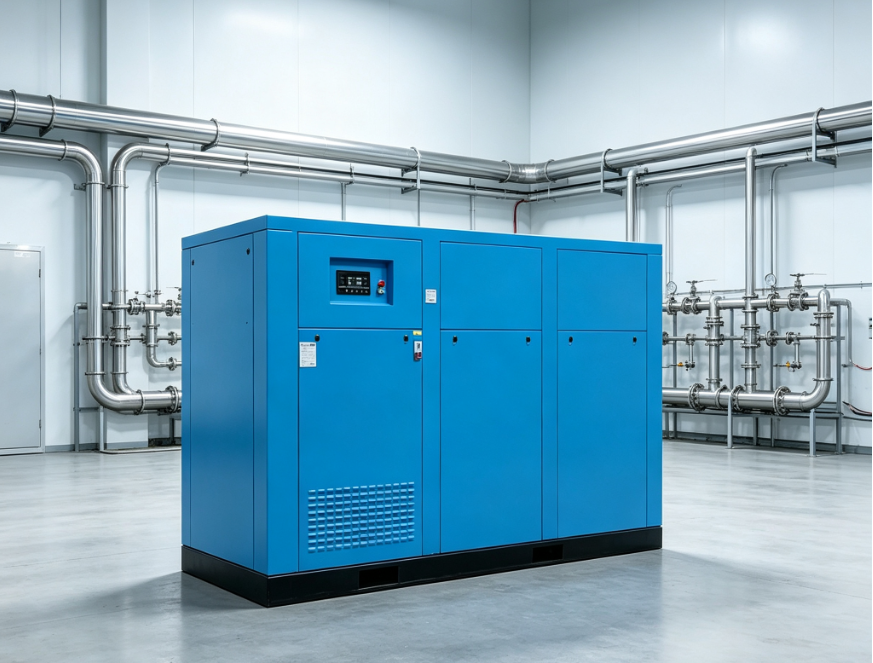

Application
Textile, medical, pharmaceutical materials, power, electronics, spraying, tobacco, instruments, food processing, feed processing, machinery processing, etc.
FAQ
Q1: What energy-saving advantages does the permanent magnet motor have?
A1: It maintains high efficiency at low rotating speed, energy saving 22%-40% vs fixed-speed models and 5%-15% vs ordinary inverter compressors. Its 0%-100% frequency range avoids unloading waste and narrow pressure band loss, with soft start cutting grid impact energy loss.
Q2: Why is the permanent magnet motor durable?
A2: Equipped with high-temperature resistant NdFeB magnets (no demagnetization below 120℃, 15+ years service life) and corona-resistant stator enameled wire for superior insulation.
Q3: What are the benefits of compact & low-noise design?
A3: Integrated compact structure saves space and easy to disassemble. The VFD controller adjusts speed based on air output to realize lower running noise than traditional machines.
Q4: What industries can this compressor be used for?
A4: Widely applied in textile, medical, pharmaceutical, electronics, food, machinery processing, spraying, tobacco, power and feed industries.
Q5: What after-sales support can you provide?
A5: We have professional after-sales engineers, global service branches and complete spare parts inventory, offering timely maintenance and technical training.
Q6: How do you guarantee product quality?
A6: All units pass strict full-process performance tests from raw material to finished machine to ensure stable high quality.
Q7: What specifications are available?
A7: Power ranges from 7.5kW to 250kW, with discharge pressure options of 0.7/0.8/1.0/1.25MPa, complete flow rate and size specifications for different demands.
Q8: Is the start-up process friendly to power grids?
A8: Yes, soft start limits operating current within full-load current, greatly reducing grid impact and avoiding damage to electrical equipment.
