Two In One 7.5kw 10HP AC Power Screw Compressor Fixed Speed Screw Air Compressor with Air Tank
Introduction
The EUC-11A series direct-driven screw air compressor is a 7.5kW / 10HP fixed-speed industrial compressor engineered for reliability, efficiency, and quiet operation. Featuring a super-silenced enclosure and a compact, space-saving design, this unit delivers 100% continuous duty performance with minimal maintenance requirements. Equipped with CE-certified electric motors, an intuitive LCD control panel, and comprehensive safety protections, it is the ideal power source for workshops, production lines, and small-to-medium manufacturing facilities. Available in multiple voltage configurations to suit global markets, the EUC-11A offers a perfect balance of performance, durability, and value.
Core Advantages
Technical Parameter
| Parameter | Specification |
|---|---|
| Model | EUC-11A (Fixed Speed) |
| Power | 7.5kW / 10HP |
| Exhaust Volume (0.7MPa) | 1.7 m³/min |
| Exhaust Volume (1.0MPa) | 1.5 m³/min |
| Exhaust Volume (1.3MPa) | 1.2 m³/min |
| Exhaust Volume (1.6MPa) | 1.0 m³/min |
| Power Supply | 380V / 3Phase / 50Hz (customizable) |
| Dimension (L×W×H) | 1670 × 900 × 1570 mm |
| Weight | 440 kg |
| Outlet Diameter | 1" |
| Cooling Method | Air cooling / Water cooling / Oil cooling (optional) |
| Drive Type | Direct-driven |

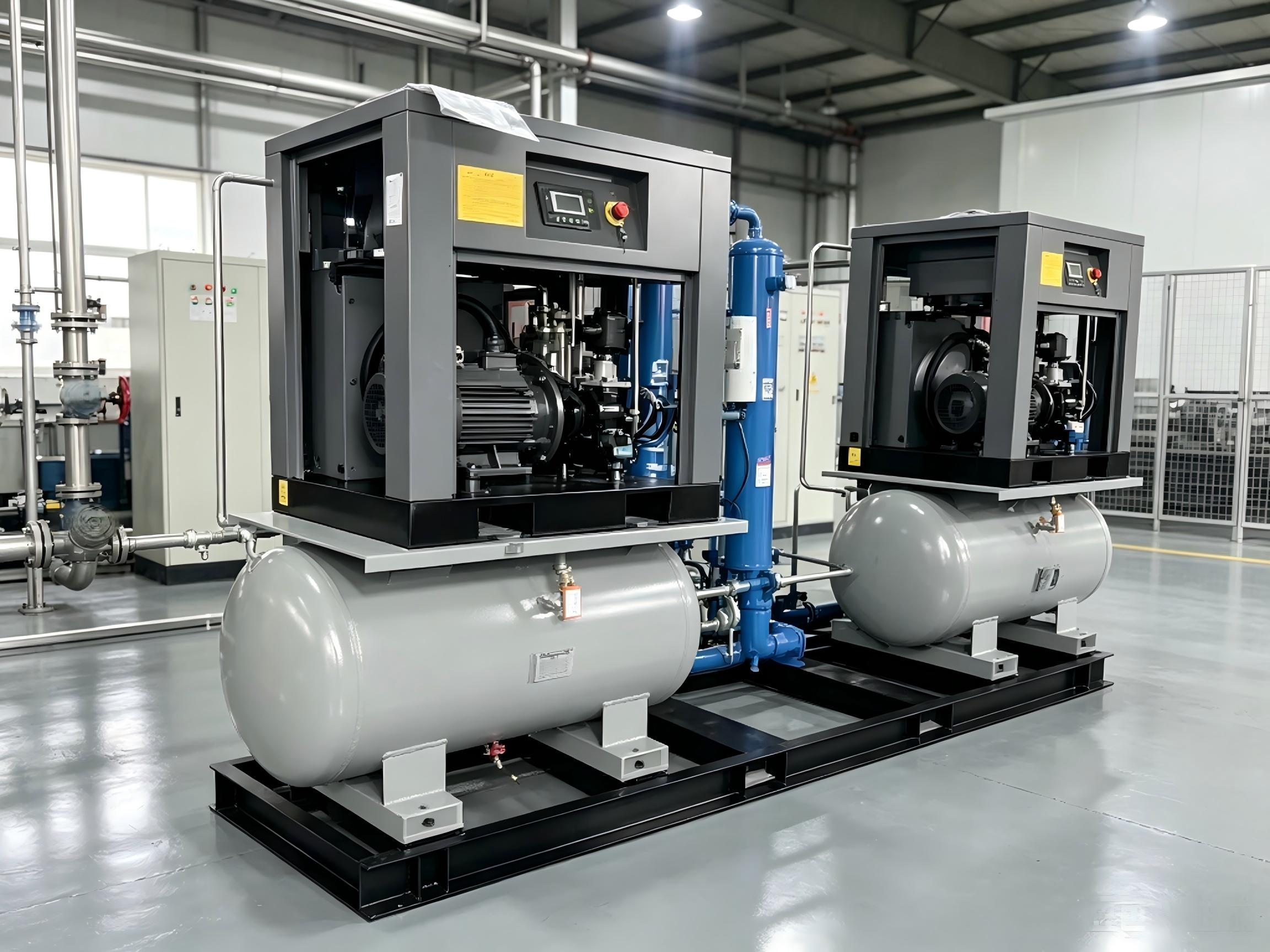

Application
- Automotive: Repair shops, spray painting, tire inflation
- Manufacturing: CNC machining, stamping, injection molding
- Food & Beverage: Packaging, bottling, food processing
- Pharmaceutical: Clean air supply for production lines
- Electronics: Component assembly, PCB manufacturing
- Textile & Printing: Looms, screen printing, fabric finishing
- General Industry: Pneumatic tools, workshop air supply, laboratory use
FAQ
Q1: What is the difference between fixed-speed and VFD models?
A: Fixed-speed models run at a constant motor speed, making them ideal for applications with steady air demand. VFD (variable-frequency drive) models adjust motor speed based on real-time air consumption, delivering energy savings of 20–35% in fluctuating load conditions.
Q2: Can I get a custom voltage for my country?
A: Yes. We offer 380V, 410V, 415V, and 220V, 3-phase, 50/60Hz as standard. Other voltage and frequency combinations are available upon request.
Q3: Which cooling method should I choose?
A: Air cooling is suitable for most general-purpose applications. Water cooling is recommended for high-temperature environments or facilities with existing water infrastructure. Oil cooling provides enhanced thermal stability for heavy-duty continuous operation.
Q4: Is the compressor suitable for 24/7 operation?
A: Absolutely. The EUC-11A is rated for 100% continuous duty, with reliable load/no-load cycling to handle demanding production schedules.
Q5: How often does maintenance need to be performed?
A: Routine maintenance is simple. The LCD control panel provides automatic reminders for oil changes, filter replacements, and other scheduled services. Typically, oil and filter changes are recommended every 2,000–3,000 operating hours.
Q6: Do you provide after-sales support and spare parts?
A: Yes. We offer lifelong spare parts supply, including air filters, oil filters, oil separators, lubricants, air tanks, dryers, and all other consumable components. Technical support is available via phone, email, or on-site service.
Q7: What is included in your warranty?
A: We provide a standard 12-month or 2,000-hour warranty (whichever comes first), covering manufacturing defects and material failures. Extended warranty options are also available.
