Featured 20 HP & High-Performance Rotary Screw Equipment
Explore our world-class rotary screw machinery, precision engineering components, and energy-saving systems optimized for heavy-duty industrial challenges in Central Africa.
The Vital Role of 20 HP Compressed Air in Equatorial Guinea's Economy
Expanding infrastructure, deep-water port modernization, and localized manufacturing drive high demand for dependable 15 kW (20 Horsepower) rotary air compressors.
A Rapidly Evolving Industrial and Hydrocarbon Landscape
Equatorial Guinea represents one of Central Africa's most strategically important energy corridors and maritime trade hubs. Anchored by the capital city of Malabo on Bioko Island and the booming commercial port city of Bata on the mainland (Río Muni), the nation is actively advancing its industrial diversification agenda under Horizon 2035. While the hydrocarbon sector—encompassing offshore natural gas extraction at Punta Europa, LNG refining, and petrochemical storage—remains the backbone of heavy investment, local manufacturing, agro-industrial processing, maritime ship repair, and infrastructure fabrication are escalating rapidly.
In this rigorous operational landscape, compressed air serves as the indispensable "fourth utility." The 20 HP (15 kW) rotary screw air compressor has emerged as the premier power bracket across production workshops, automated packaging plants, and logistics facilities. Delivering a balanced volumetric delivery of 2.0 to 2.5 m³/min (70–88 CFM) at standard 8 to 10 bar working pressures, 20 HP units provide the exact capacity required for medium-scale industrial automation without imposing unsustainable burdens on local electrical grids.
Why 20 HP (15 kW) is Equatorial Guinea's Sweet Spot
- Continuous Duty Cycle: 100% continuous 24/7 run-time without thermal shutdown risk compared to piston alternatives.
- Grid Compatibility: Smooth soft-start capabilities suitable for regional three-phase 380V/50Hz power grids.
- Compact Footprint: Modular skid-mounted layout easily transported between Bioko Island and mainland Bata.
- Optimized Operating Cost: Lower specific power consumption ensuring rapid return on investment.
Tropicalized Rotary Screw Engineering for Extreme Humidity
Operating in Malabo and coastal Bata means facing constant relative humidity above 85%, high ambient temperatures, and corrosive maritime saline air. Our compressors are custom-engineered to withstand these rigorous factors.
Heavy-Duty Thermal Management
Equipped with oversized plate-fin aluminum coolers and independent thermostatically controlled centrifugal cooling fans. The system guarantees reliable heat dissipation even under continuous 46°C ambient conditions without oil emulsification or high-temperature trips.
Anti-Corrosive Epoxy Finish
Every cabinet and chassis receives high-grade industrial electrostatic powder coating with multi-layer zinc phosphating. Critical internal hydraulic fittings, stainless steel piping, and IP55/IP65 electrical enclosures resist salt fog corrosion along the Gulf of Guinea.
Multi-Stage Moisture Separation
Tropical air carries massive moisture loads. Our integrated air system pairs the 20 HP screw airend with an integrated centrifugal water separator, zero-loss electronic condensate drains, and oversized refrigerated dryers delivering stable 2-10°C pressure dew points.
Where 20 HP Screw Compressors Drive Productivity
From maritime logistics along the Bioko coastline to inland forestry processing in Río Muni, our 20 HP air compressor units power essential machinery daily.
1. Offshore & Onshore Support Operations
In support facilities servicing the Alba, Zafiro, and Ceiba oilfields, clean 8-bar compressed air powers pneumatic actuators, valve testing manifolds, offshore container cleaning rigs, nitrogen generation feed, and workshop maintenance tooling with uncompromised safety.
2. Timber, Sawmill & Wood Processing
The mainland provinces around Bata and Evinayong boast rich timber processing facilities. 20 HP screw compressors operate CNC carving routers, pneumatic wood clamps, sawdust vacuum extraction systems, and automated timber stacking machinery in dusty, high-load settings.
3. Food, Beverage & Water Bottling
Urban hubs in Malabo rely on localized beverage bottling and purified water packaging. Our oil-lubricated and oil-free rotary units, coupled with precision high-efficiency filters, provide ultra-pure compressed air for blow molding, capping, labeling, and carton packing lines.
4. Commercial Automotive & Fleet Workshops
Equatorial Guinea's heavy logistics fleets, mining haulers, and construction machinery require dedicated tire inflation, high-torque impact wrenches, sandblasting cabins, and continuous electrostatic paint booths powered smoothly by 20 HP rotary units.
5. Construction & Concrete Batching
Road expansion and harbor infrastructure projects around the Port of Bata utilize stationary and mobile screw compressors to drive cement silo aerators, automated batch plant pneumatic valves, shotcrete nozzles, and heavy pneumatic demolition equipment.
6. Metal Fabrication & Marine Shipyard Repair
Ship repair yards and steel fabricators rely on constant-pressure 10-bar air for plasma arc cutting assist gas, grit blasting, weld seam grinding, and pneumatic metal shearing without pressure drops during peak shifts.
Precision Twin-Screw Airends & Permanent Magnet VFD Control
At the heart of our 20 HP (15 kW) rotary compressor is a large-diameter twin-screw rotor profile. Machined on German high-precision CNC grinding centers, the 5:6 tooth profile creates tight sealing lines with minimal blow-hole clearance, yielding superior volumetric efficiency at low rotational speeds (typically 1450 to 2900 RPM).
To conquer unstable grid voltages and variable air consumption cycles in African industrial operations, our Permanent Magnet Variable Frequency Drive (PM VFD) systems automatically modulate motor speed in direct proportion to real-time air demand. This eliminates wasteful idle unloading cycles, cuts motor starting current spikes to near zero, and reduces total electricity consumption by up to 35% compared to fixed-speed units.
The integrated micro-computer intelligent controller features intuitive multi-language menus, real-time pressure and temperature monitoring, automatic fault self-diagnosis, maintenance interval countdowns, and RS485 communication protocols ready for IoT factory integration.

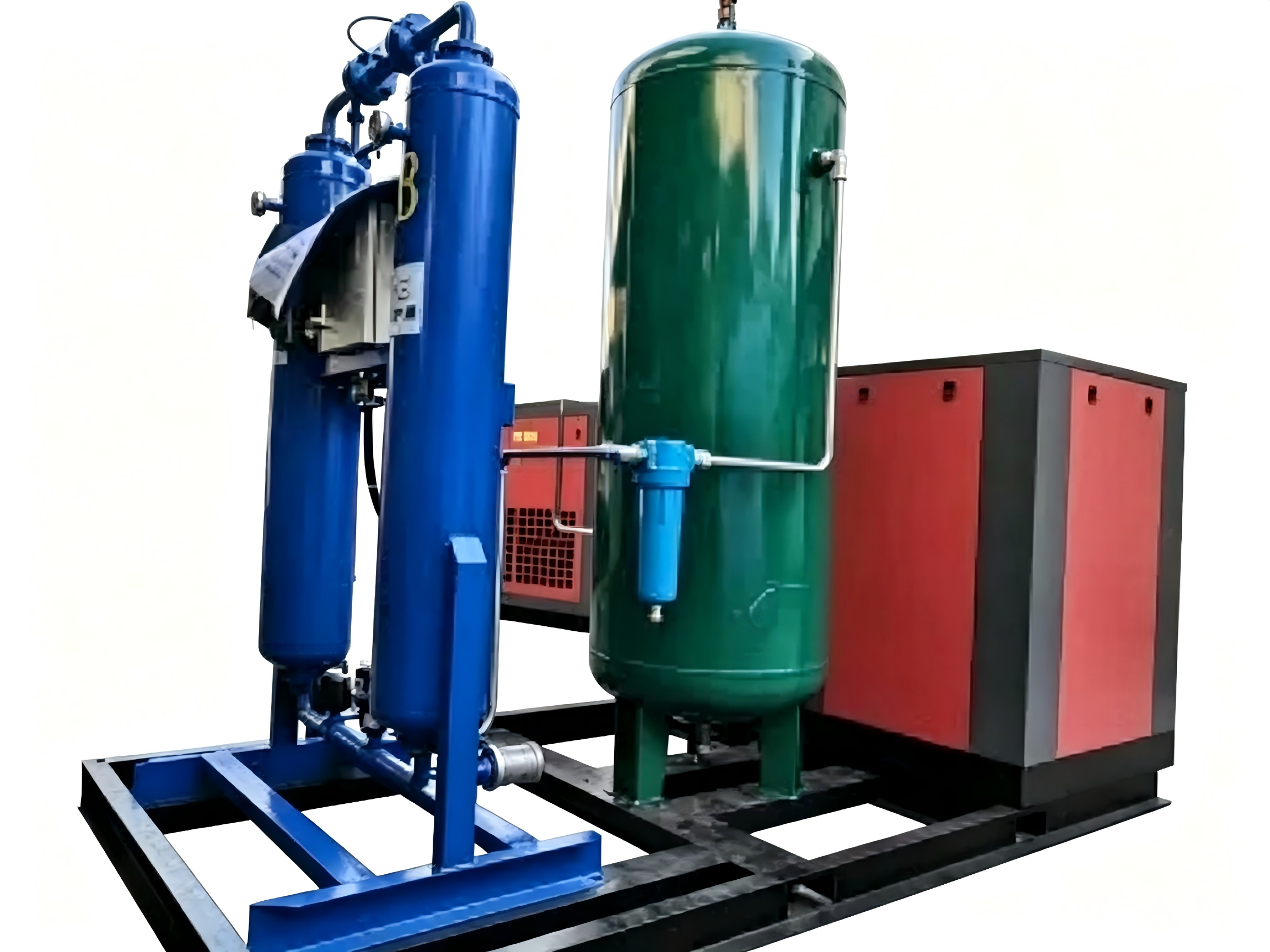

Integrated 4-in-1 Compressor Station for Equatorial Guinea
We do not merely supply bare compressors; we engineer complete, turnkey compressed air stations configured to deliver dry, oil-free, contaminant-free air right out of the box.
1. Air Generation (20 HP Screw Unit)
Precision twin-screw compressor with low-noise enclosure, high-efficiency intake filtration, synthetic long-life lubricants (4,000+ hours), and intelligent microprocessor control with automatic stop/start.
2. Air Storage & Buffering (Tank)
ASME and CE certified vertical air receiver tanks (500L to 1000L) equipped with safety pressure relief valves, pressure gauges, inspection handholes, and corrosion-resistant internal coatings.
3. Moisture & Particulate Filtration
Air-cooled refrigerated air dryer paired with 4-stage precision inline coalescing filters (Pre-filter, Fine Filter, Ultra-fine Oil Mist Filter, and Activated Carbon), achieving ISO 8573-1 Class 1-2 purity.
Company Profile - Shanghai Honest Compressor Co., Ltd.
Shanghai Honest Compressor Co., Ltd. is a British-owned enterprise. It was founded in early 2004. The production address is located at NO. 355 Jiajian Branch Road, Malu Town, Jiading District, Shanghai, China. It is a large-scale manufacturing enterprise specializing in the production of twin-screw air compressors in China. At the same time, it is also an important supplier of air system solutions.
We provide various types of piston air compressors (low pressure, medium pressure, high pressure, oil-free air compressors), screw air compressor systems (3KW-480KW various screw air compressors, gas separation equipment, refrigerant compressors, cold dryers, filters, ceramic membrane filtration systems) and various equipment accessories and consumables.
We fully implement strict management throughout the entire manufacturing process, strictly monitor product quality and environmental protection, and the company has passed ISO9001:2015 quality management system certification.
We pay attention to market trends in technology research and development, close to the needs of users, actively absorb the advantages of domestic and foreign brand performance structures, and integrate our own features of convenient maintenance, so that the air compressors we produce have more perfect structures, better performance, and energy saving and consumption reduction.
Obviously, after the test of the National Compressor Inspection Center, the energy consumption data is superior to the national energy-saving standard, and can provide users with various series of 3kW--480kW, air-cooled and water-cooled screw air compressors with a flow rate of 0.5m³/min-75m³/min. There are multiple models and categories of machines for users to choose from, as well as permanent magnet variable frequency air compressors, oil-free machines, mobile air compressors, etc., and can provide a complete set of construction plans for air compressor stations with design and manufacturing, user training, and service. The ability to support and host a complete set of service items such as overhaul.
In order to facilitate the contact and communication between customers and enterprises, the company has opened a free service hotline of 400-705-9168, set up branches and dealer sales and service teams in major cities across the country, and will fully meet the various needs of users worldwide.
Direct Factory Export & Fast Support for Equatorial Guinea
Ensuring seamless international freight forwarding, seaworthy export packaging, rapid customs clearance documentation, and long-term spare parts availability.
Reliable Shipping to Malabo & Bata
Direct maritime container shipping via established international sea routes. Heavy fumigated wooden crate packaging with moisture-barrier vacuum foil protects equipment against ocean humidity and transit vibrations.
Pre-Packaged 2-Year Maintenance Kits
To safeguard against operational downtime, every exported 20 HP unit can be supplied with genuine maintenance consumable kits (air filters, oil filters, oil-air separators, thermostatic valves, and synthetic lubricants).
24/7 Digital Remote Support
Our senior engineering department provides immediate online commissioning guidance, electrical wiring diagrams, troubleshooting videos, and live technical diagnostic support directly to local facility operators in Spanish or English.
Complete Industrial Air Compressor Portfolio

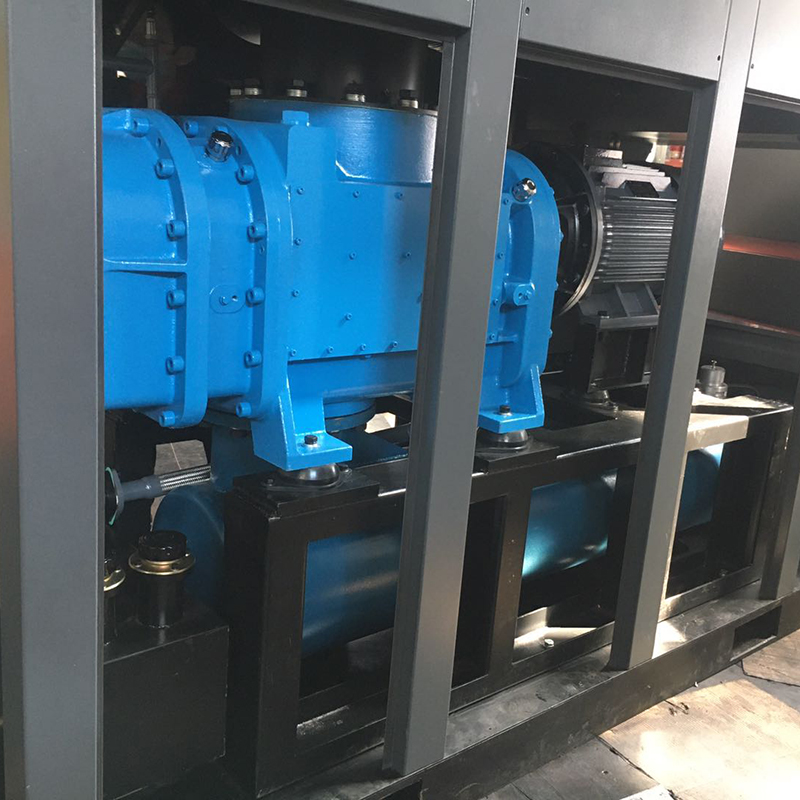

Select from our extensive spectrum of stationary diesel compressors, permanent magnet variable frequency systems, oil-free medical blowers, and compressed air treatment equipment.
